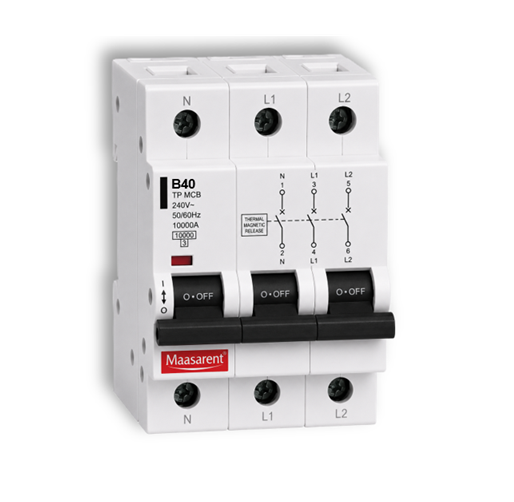

Maasarent MCBTP-B006-B032 Triple Pole Miniature Circuit Breaker (TP MCB) B Curve 6A–32A

Long Description

The MCBTP-B006-B032 Triple Pole Miniature Circuit Breaker (TP MCB) is designed to deliver reliable protection for three-phase electrical distribution systems. Engineered with a B Curve tripping characteristic, it is suitable for circuits with low inrush currents such as lighting systems, general power distribution, residential complexes, commercial buildings, and office installations.

This device provides simultaneous protection and isolation of all three phases, ensuring complete circuit safety during fault conditions or maintenance activities. Its thermal-magnetic trip mechanism ensures accurate overload detection and rapid response to short-circuit faults, improving system reliability and electrical safety.

Constructed using high-grade flame-retardant materials, the MCBTP-B006-B032 offers durability, long service life, and consistent performance under demanding operating conditions. The compact DIN rail mounting system allows easy installation in distribution boards and control panels, while finger-safe terminals enhance operator safety during wiring and maintenance.

The MCBTP-B006-B032 is ideal for modern three-phase electrical systems requiring stable performance, efficient protection, and compliance with international safety standards.

Key Features

Available in 6A to 32A current ratings

Triple Pole (TP) configuration for three-phase circuit protection

B Curve tripping characteristic (3–5× rated current), suitable for low inrush current loads

Reliable protection against overload and short circuits

Thermal-magnetic tripping mechanism for rapid fault response

DIN rail mounting for quick and secure installation

Compact modular design

Flame-retardant thermoplastic housing

High electrical and mechanical durability

Finger-safe terminals for enhanced safety

Positive ON/OFF trip indication

Manufactured in compliance with IEC 60898-1 / IS 8828 standards

Applications

Three-phase residential distribution boards

Commercial electrical installations

Industrial control panels

Lighting distribution circuits

Three-phase power distribution systems

Office buildings

Retail shops and commercial complexes

Small machinery and equipment

Generator distribution panels

Manufacturing units

Electrical switchgear panels

Building electrical infrastructure

Low-voltage power distribution systems

Utility power circuits

General-purpose three-phase circuit protection
